6″ Round Mount LED Disk Light

Product Description：

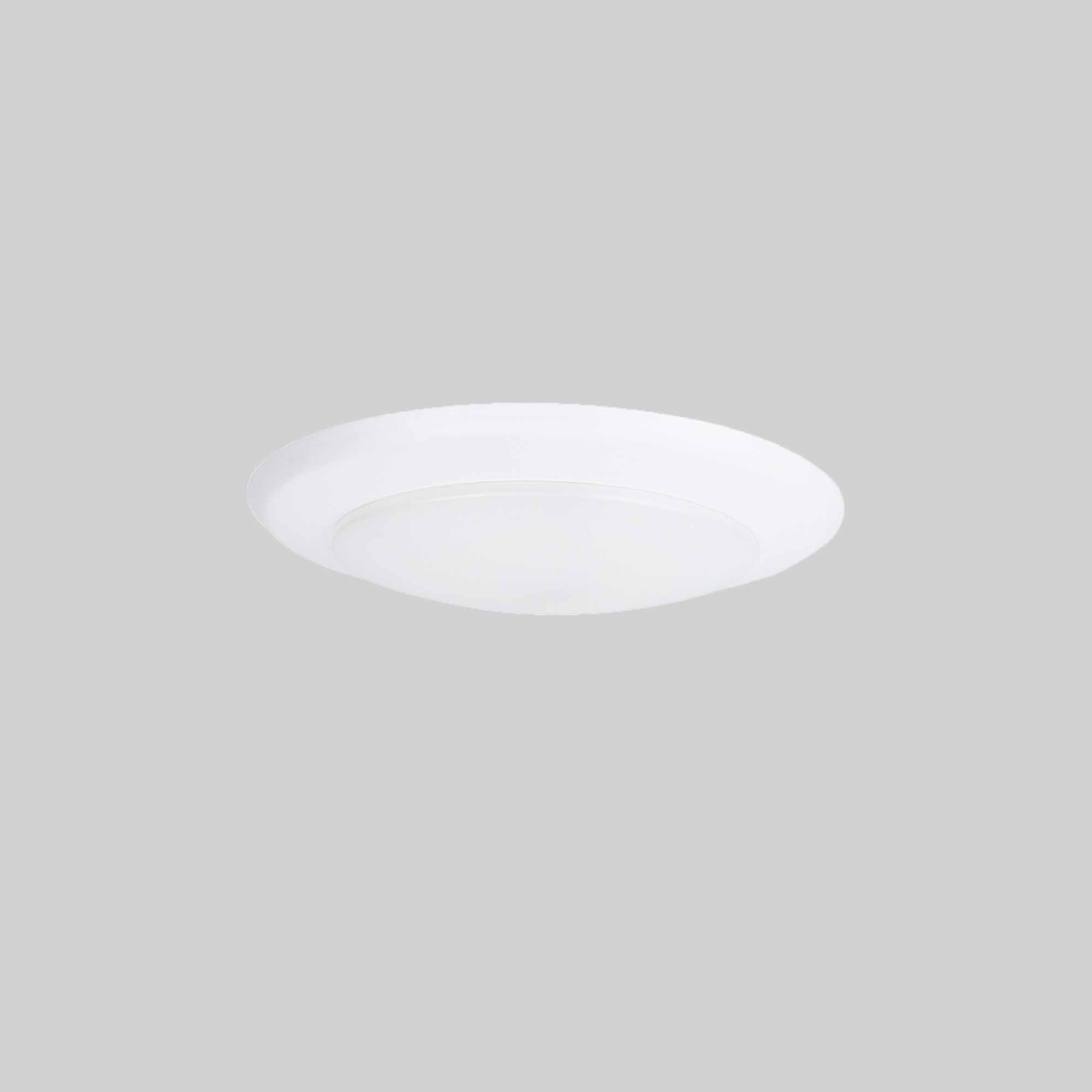

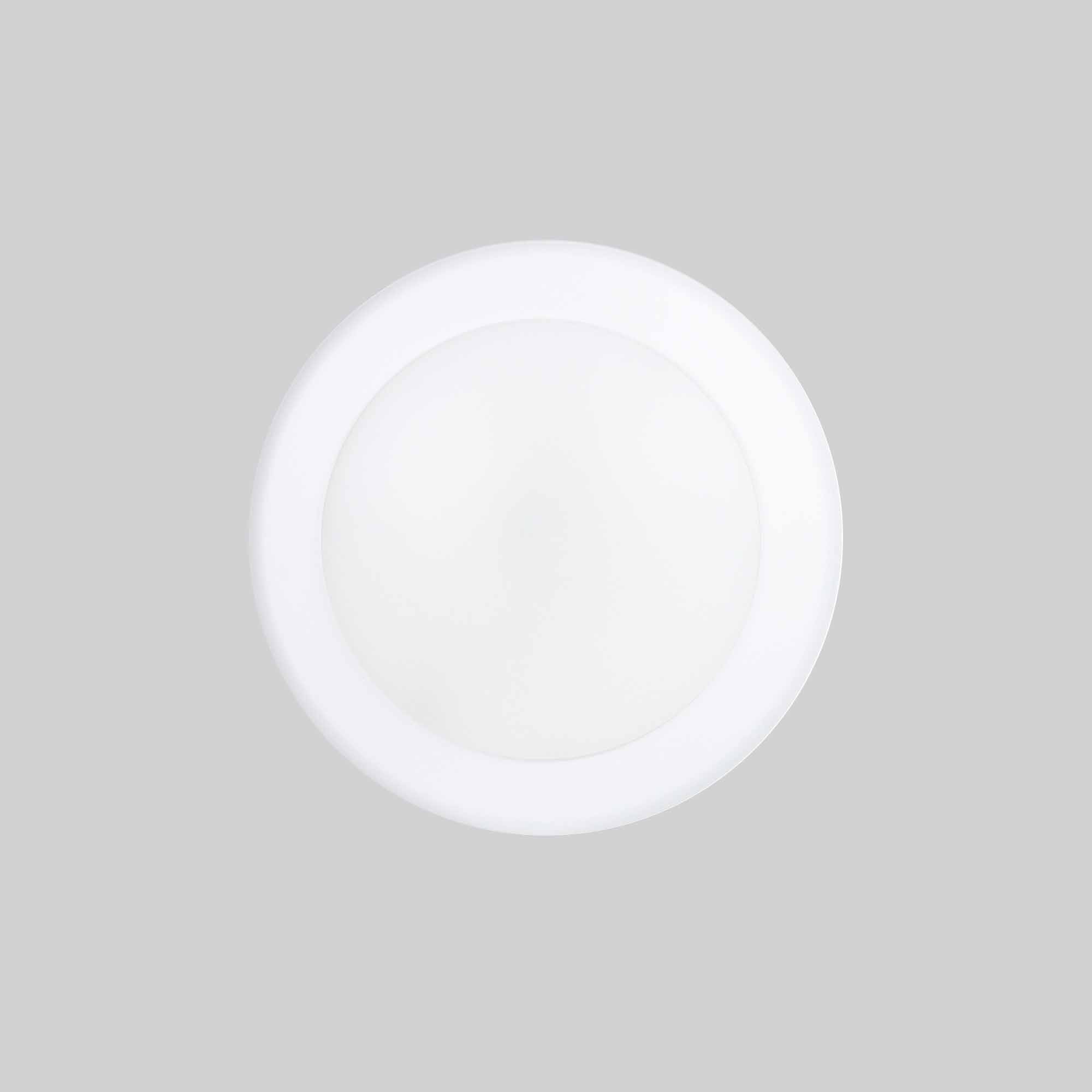

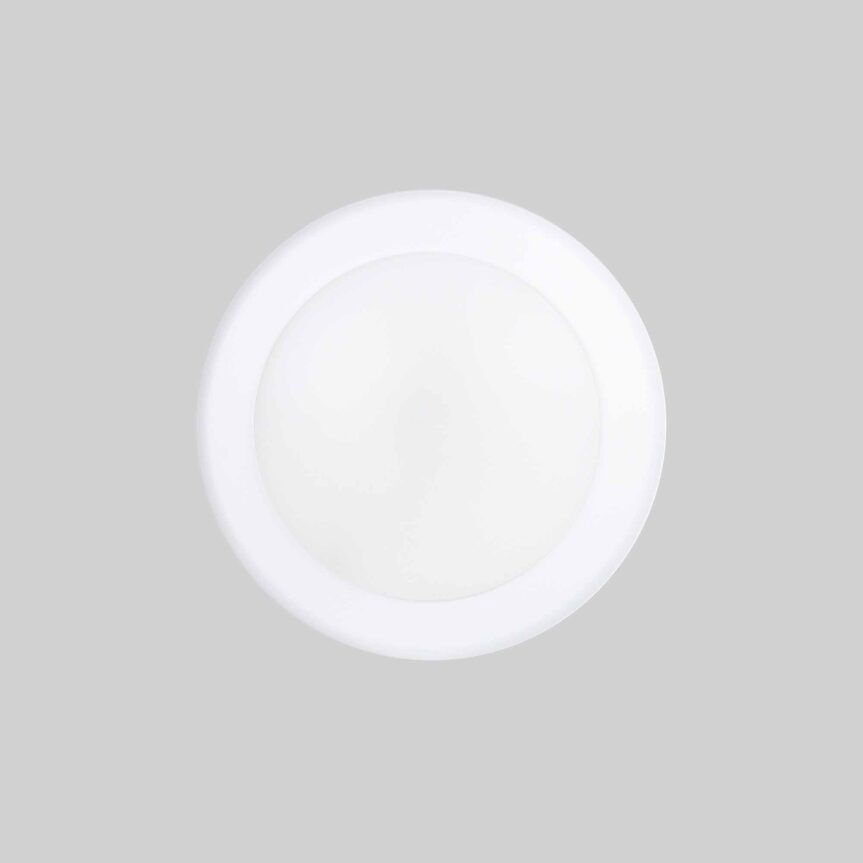

SLIMLED BASIC – 6″ Flush Mount LED Disk Light, Single Color, & 5%-100% Dimmable

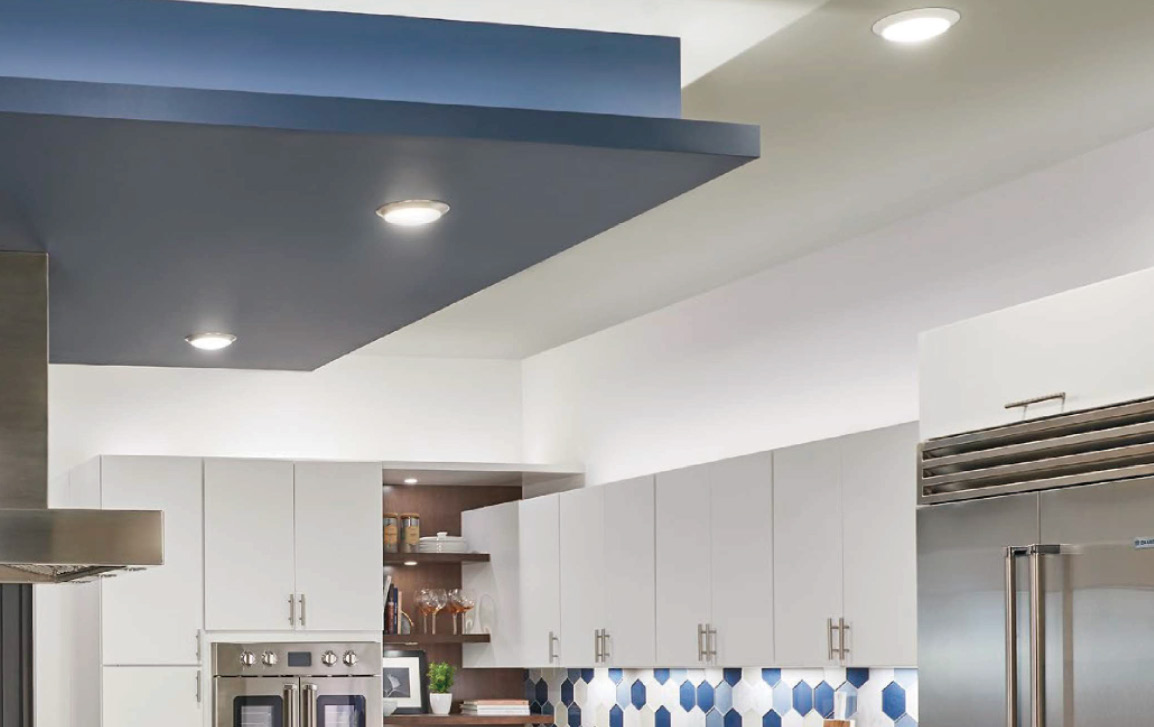

SLIMLED Basic is a versatile 6″ LED disk light designed for retrofit applications, providing consistent single-color lighting for residential and commercial spaces. The 5%-100% Triac dimmable feature offers adjustable brightness, making it suitable for various environments. It is compatible with standard 4″, 5″, and 6″ junction boxes, ensuring easy installation.

Key Features:

• Single Color Lighting: Fixed color temperature, providing consistent and bright illumination.
• Brightness Control: 5%-100% Triac dimmable, compatible with most LED dimmers (Lutron, Legrand, Leviton, Zooz).
• Universal Fit: Compatible with standard 4″, 5″, and 6″ junction boxes.
• Quick Installation: Includes TP24 connector and E26 adapter for easy setup.
• High-Quality Material: Spinning metal fixture ensures reliable heat dissipation.
• Energy Efficient: ETL and Energy Star certified, suitable for USA and Canada.
• Durability: 5-year warranty with a 50,000-hour lifespan.

---

Specifications:

Model	Size	Shape	Input	Watt	Lumen	CRI	Color	Beam Angle	Dimming
LET-601-ETL	6″	Round	120VAC	15W	1230Lm	80	Single Color	120°	Triac

---

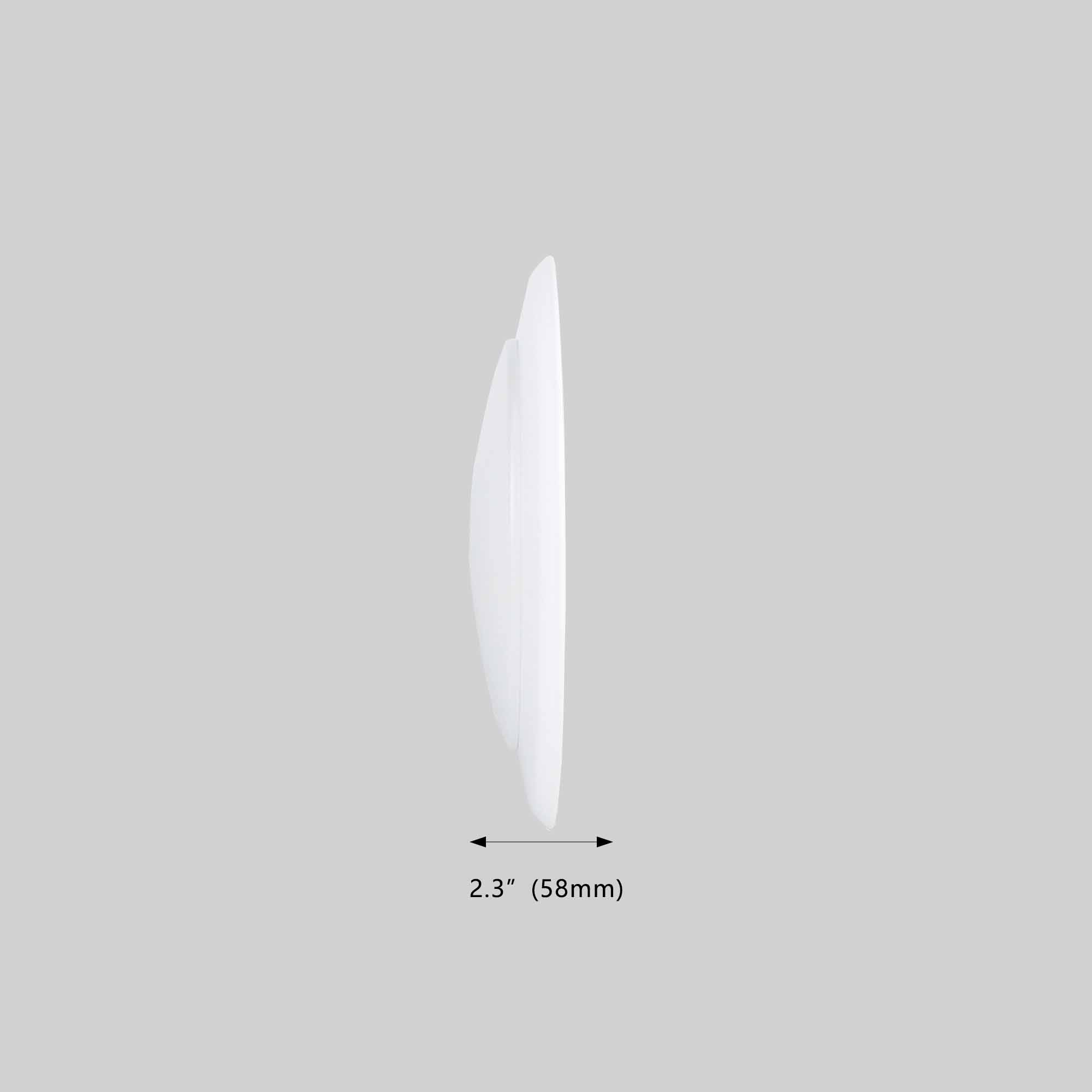

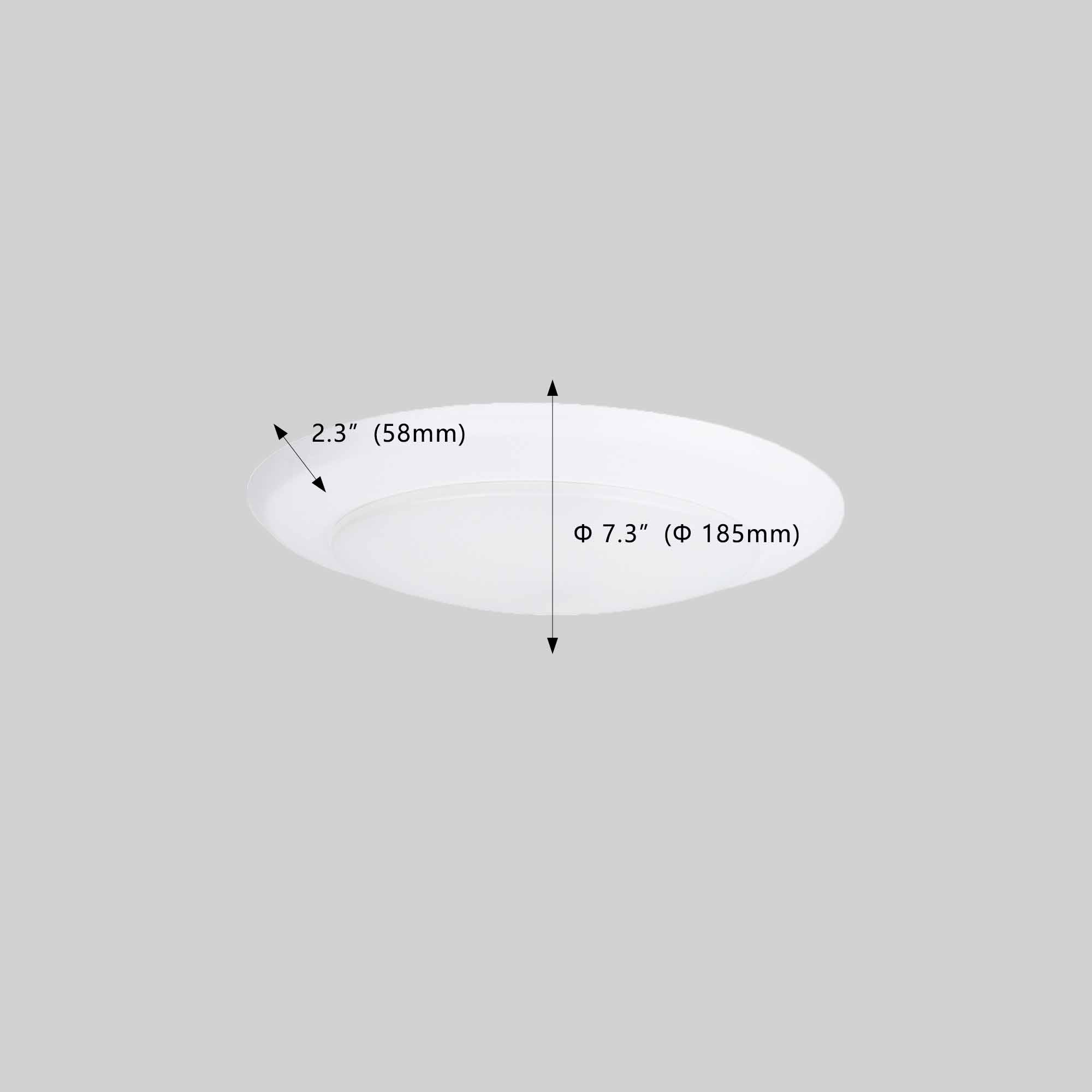

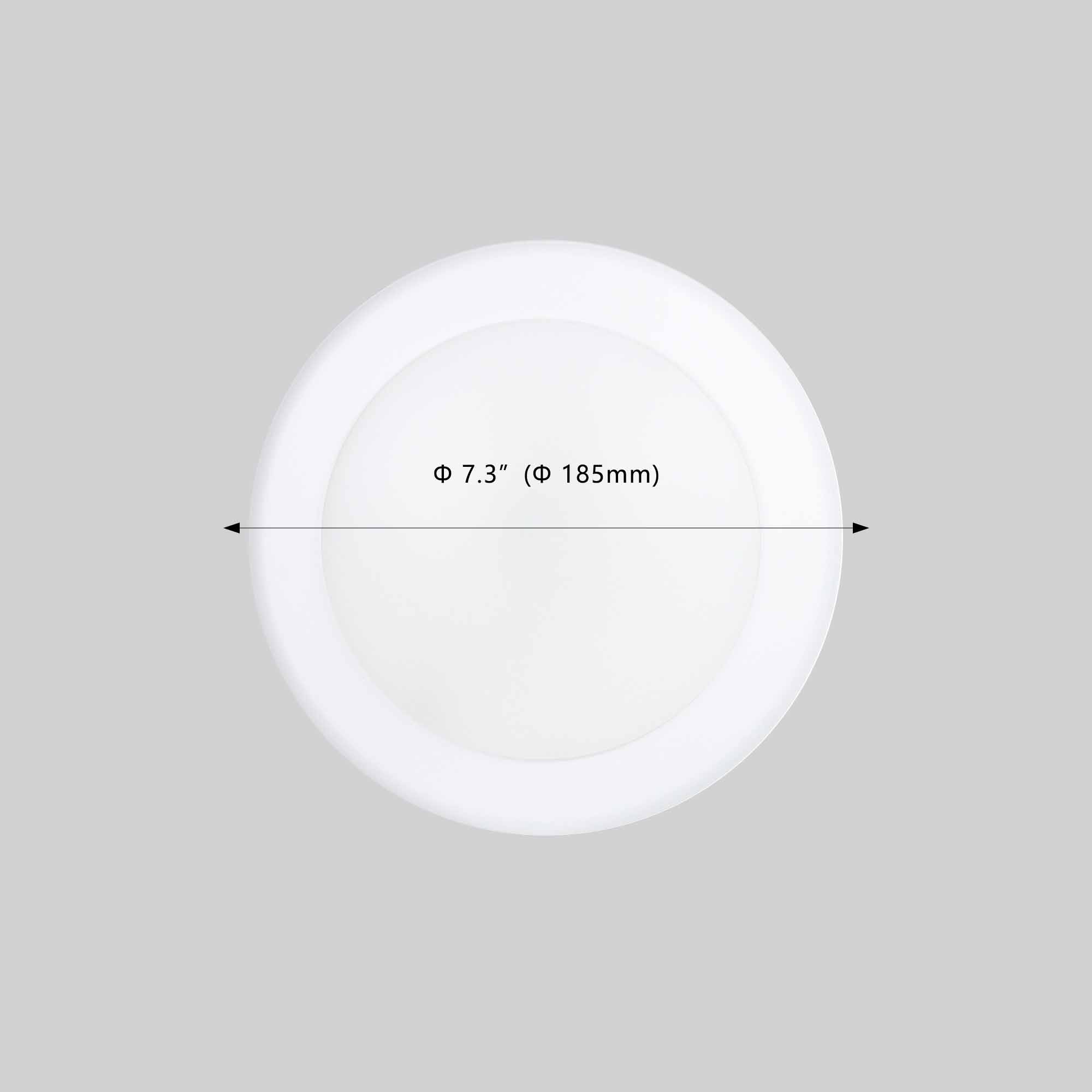

Dimensions:

Model	Outer Diameter	Height
LET-601-ETL	Ø 7-3/10″ (185mm)	2-3/10″ (58mm)

---

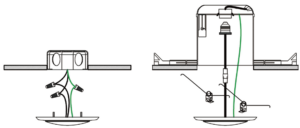

Installation Instructions:



1. Ensure the power is turned off before installation.
2. Mount the light into the existing 4″, 5″, or 6″ junction box.
3. Connect the wires using the TP24 connector or E26 adapter.
4. Secure the SLIMLED Disk Light using the spring clips.
5. Restore power and test the light.

---

Ordering Guide:

• Size: 6″.
• Color Temperature: Single Color.
• Finish Options: White.
