LED Recessed Lighting

Product Description：

SLIMLED BASIC – 4″ and 6″ Recessed LED Slim Downlight, CCT Selectable & 5%-100% Dimmable

SLIMLED Basic is a versatile and ultra-thin LED downlight designed for both 4″ and 6″ recessed installations. It offers adjustable white color temperatures (2700-3000-4000-5000-6000K) via a DIP switch, providing customizable lighting for various environments. The 5%-100% Triac dimming feature allows precise brightness control, making it perfect for both residential and commercial spaces.

Key Features:

• CCT Selectable: Choose from 2700K, 3000K, 4000K, 5000K and 6000k via DIP switch.
• Brightness Control: 5%-100% Triac dimmable, compatible with most LED dimmers (Lutron, Legrand, Leviton, Zooz).
• Universal Fit: Designed for 4″ and 6″ recessed installations.
• Ultra-Thin Design: Perfect for spaces with low ceiling clearance.
• Energy Efficient: ETL and Energy Star certified, suitable for USA and Canada.
• Durability: 5-year warranty with a 50,000-hour lifespan.

---

Specifications:

Model	Size	Shape	Input	Watt	Lumen	CRI	Color Temperature	Beam Angle	Dimming
LET-9X-ETL-5CCT	4″	Round	120VAC	9W	750Lm	80	5CCT (2700K, 3000K, 4000K, 5000K, 6000K)	120°	Triac
LET-12X-ETL-5CCT	6″	Round	120VAC	12W	1050Lm	80	5CCT (2700K, 3000K, 4000K, 5000K, 6000K)	120°	Triac

---

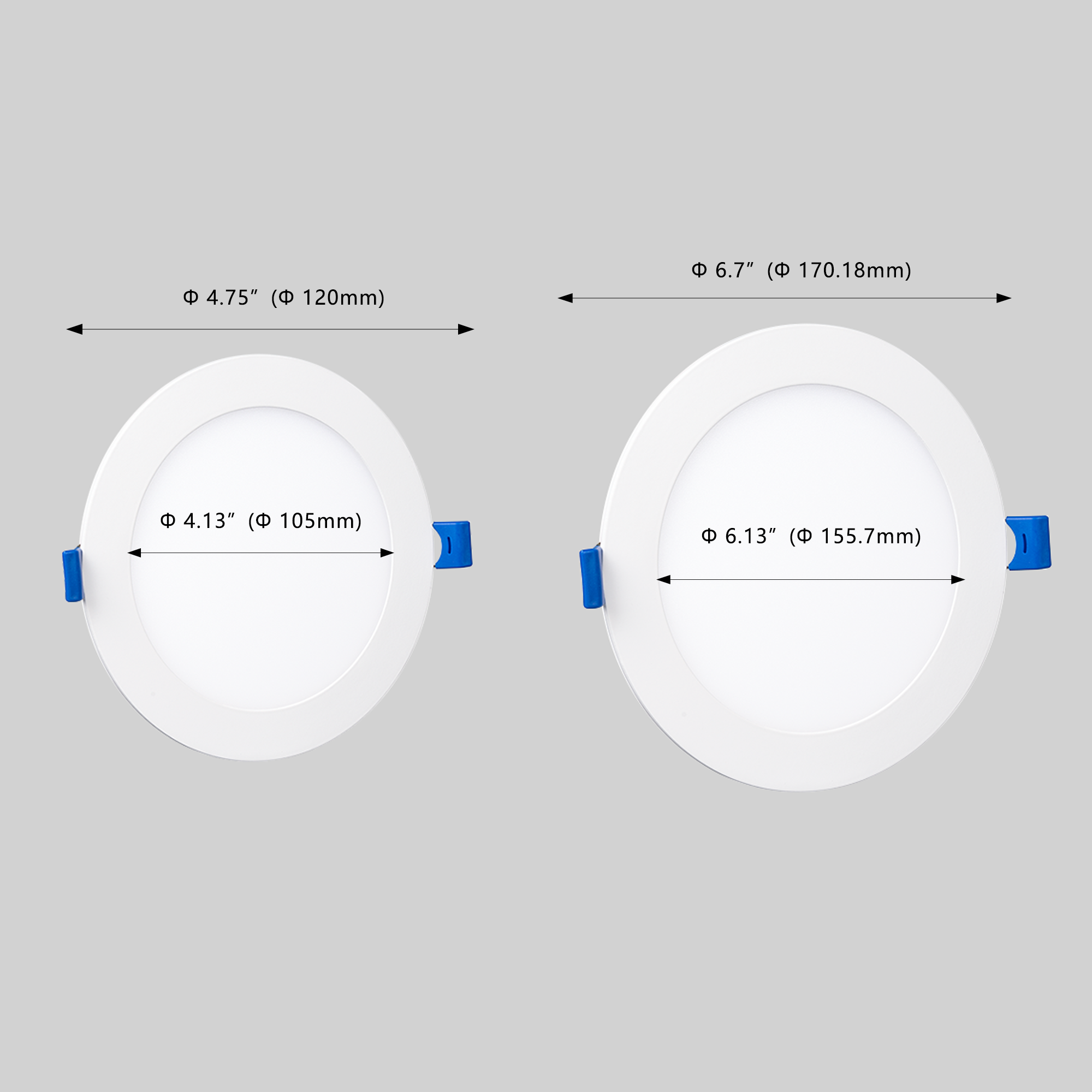

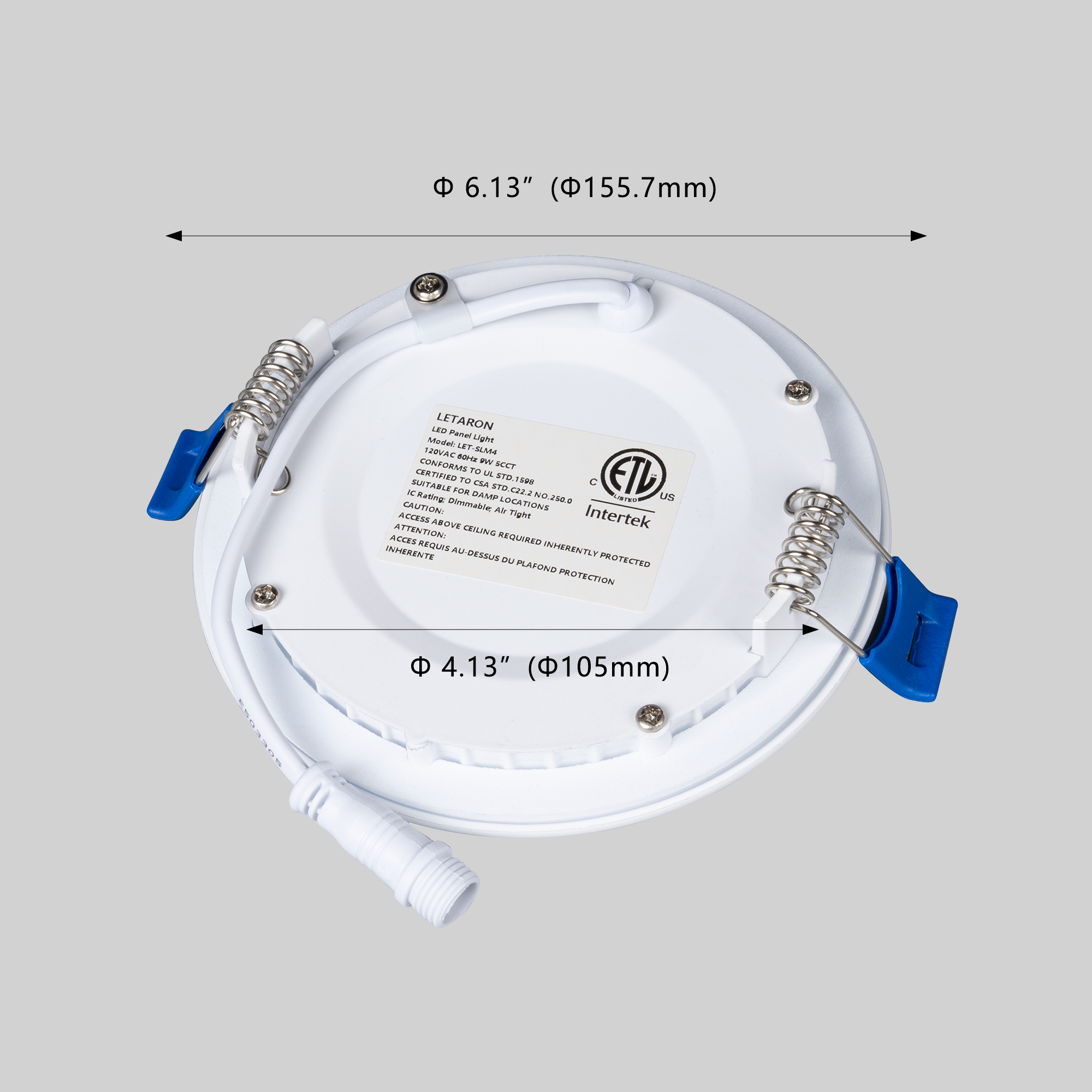

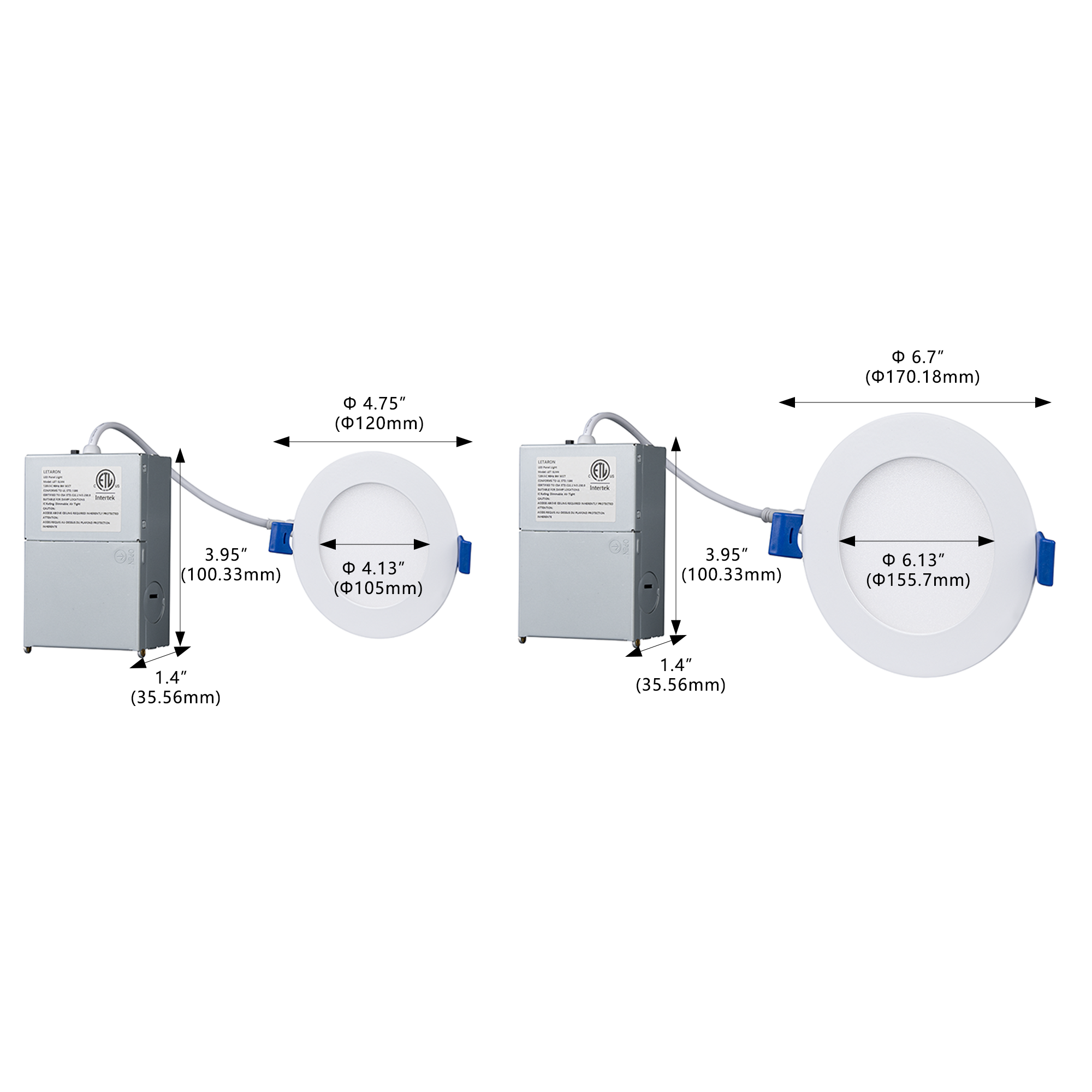

Dimensions:

Model	Outer Diameter	Height	Cutout
LET-9X-ETL-5CCT	Ø 4-3/4″ (120mm)	1″ (25mm)	Ø 4-1/8″ (105mm)
LET-12X-ETL-5CCT	Ø 6-7/10″ (170mm)	1″ (25mm)	Ø 6-1/8″ (155mm)

---

Installation Instructions:











1. Turn off the power before installation.
2. Cut an appropriate hole in the ceiling (4-1/8″ for 4″ model, 6-1/8″ for 6″ model).
3. Connect the wires using the quick-wire terminals.
4. Secure the downlight using the spring clips.
5. Adjust the color temperature via the DIP switch.
6. Restore power and test the light.

---

Ordering Guide:

• Size: 4″ and 6″.
• Color Temperature: 5CCT (2700-3000-4000-5000-6000K).
• Finish Options: White.
