Slimframe Ceiling Light Series

Product Short Description (Optimized):

SLIMFRAME – Ultra-thin Flush Mount LED Ceiling Light
CCT Selectable (3000K, 4000K, 5000K), 5%-100% Triac Dimmable. Available in 12″ and 16″. Perfect for low ceilings with even, glare-free lighting.

---

Product Description：

SLIMFRAME – Flush Mount Slim Fixture LED Ceiling Light, CCT Selectable & 5%-100% Dimmable

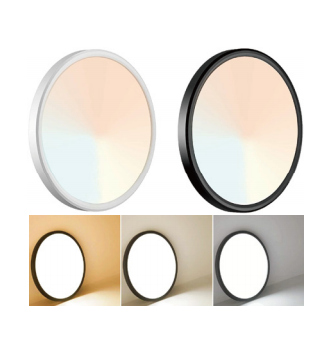

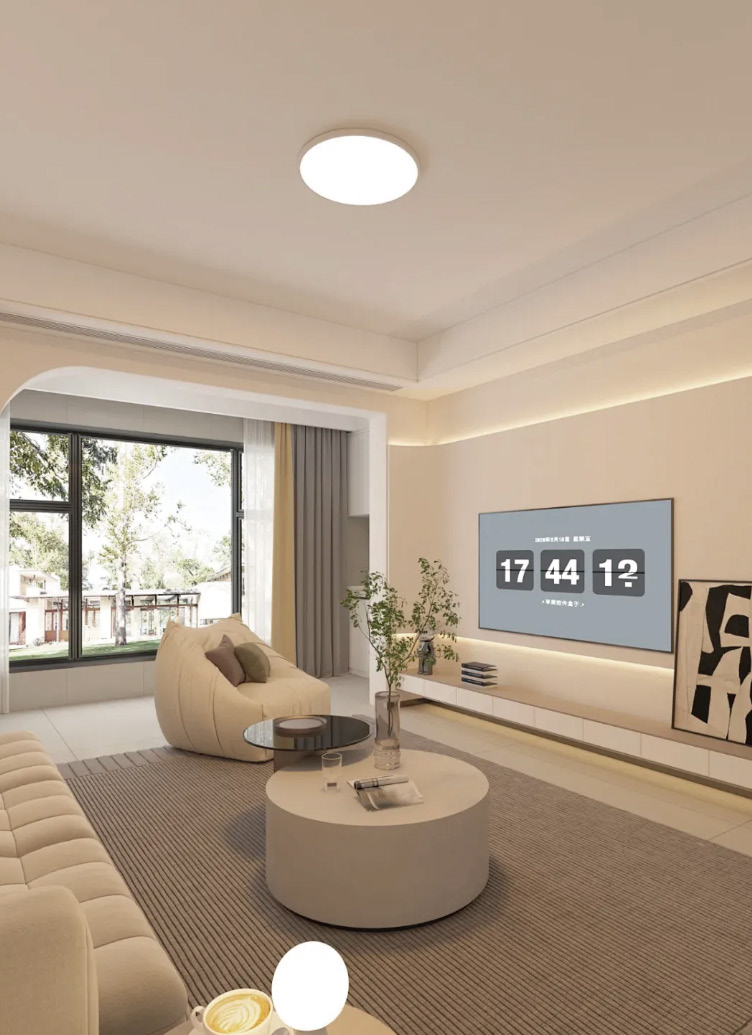

SLIMFRAME is a sleek, ultra-thin LED ceiling light with a slim frame and frosted acrylic light guide plate, providing soft, even illumination without dark spots or glare. It is perfect for residential and commercial spaces with low ceilings, ensuring consistent lighting across the room. The CCT is selectable, allowing you to choose from three color temperatures (3000K, 4000K, and 5000K), while the 5%-100% Triac dimmable solution offers versatile brightness control.

Key Features:

• CCT Selectable: Choose from 3000K, 4000K, or 5000K via DIP switch on the fixture.
• Brightness Control: 5%-100% Triac dimmable, compatible with most LED dimmers (Lutron, Legrand, Leviton, Zooz).
• Slim Design: Ultra-thin frame with frosted acrylic light guide plate for even, glare-free lighting.

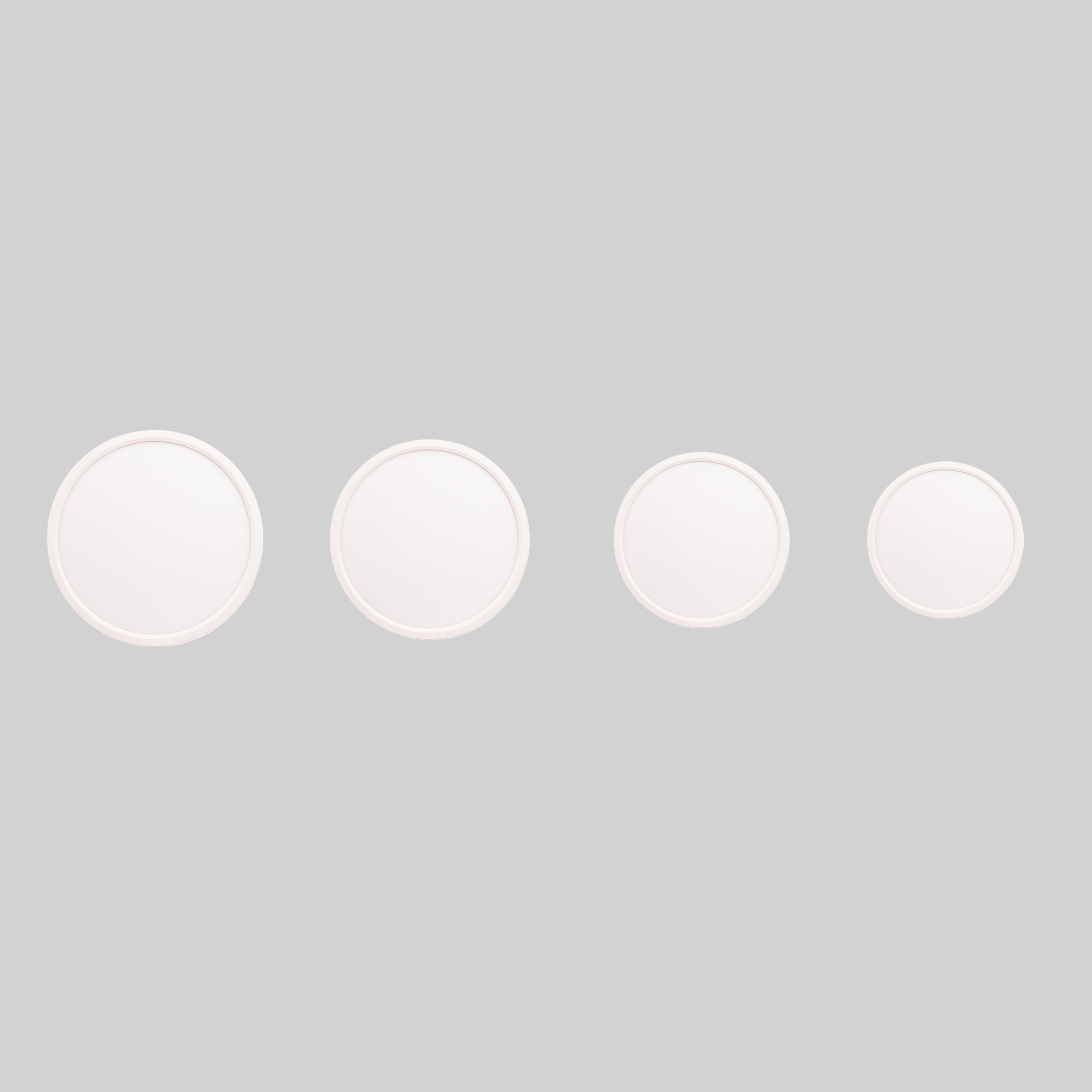

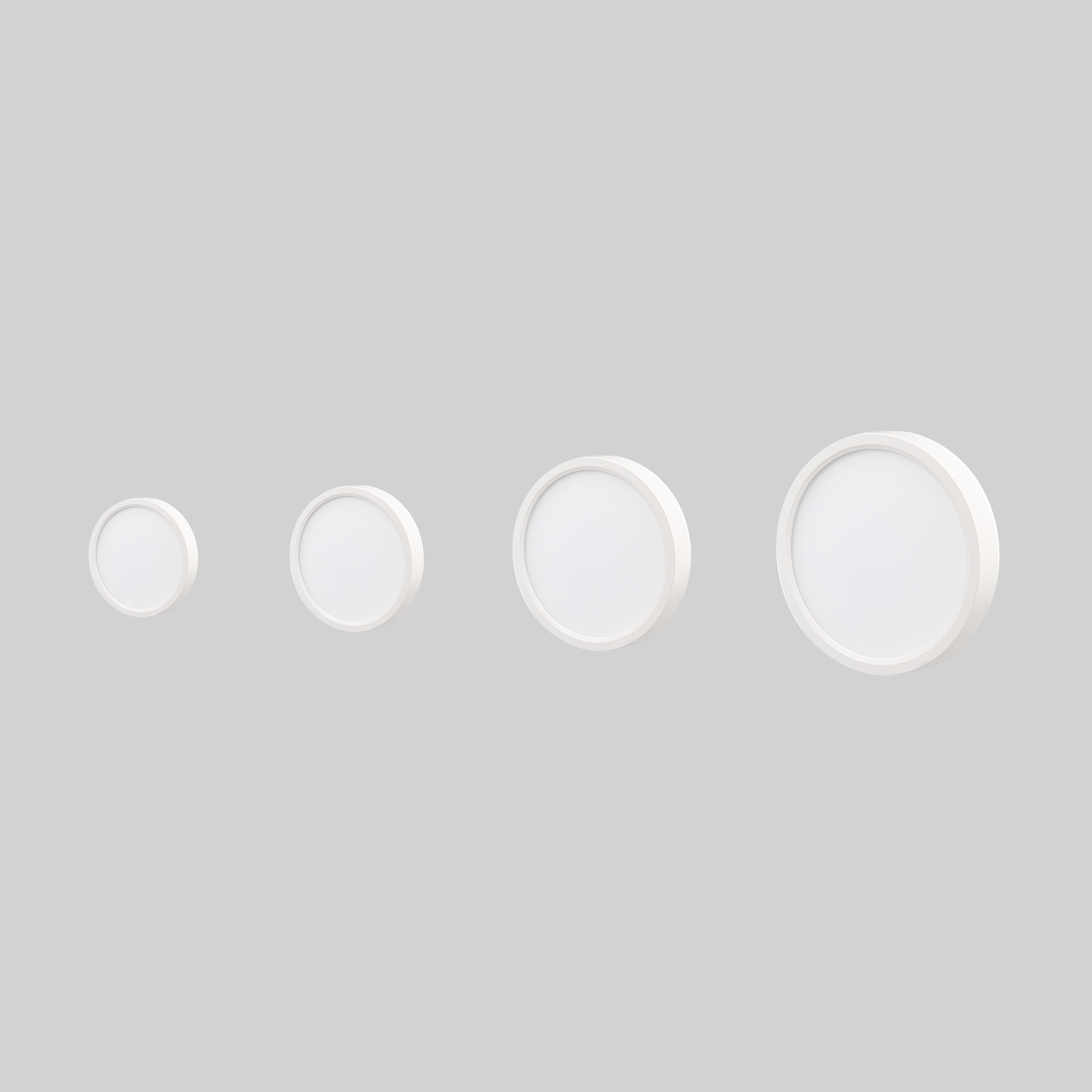

• Versatile Sizes: Available in 12″ and 16″.
• Quick Installation: Mounting bracket compatible with standard 4″, 5″, and 6″ junction boxes.
• Energy Efficient: ETL and Energy Star certified, suitable for USA and Canada.
• Durability: 5-year warranty with a 50,000-hour lifespan.

---

Specifications:

Model	Size	Shape	Input	Watt	Lumen	CRI	Color	Beam Angle	Dimming
LET-1201-ETL	12″	Round	120VAC	24W	2000Lm	80	3CCT	120°	Triac
LET-1601-ETL	16″	Round	120VAC	36W	3000Lm	80	3CCT	120°	Triac

---

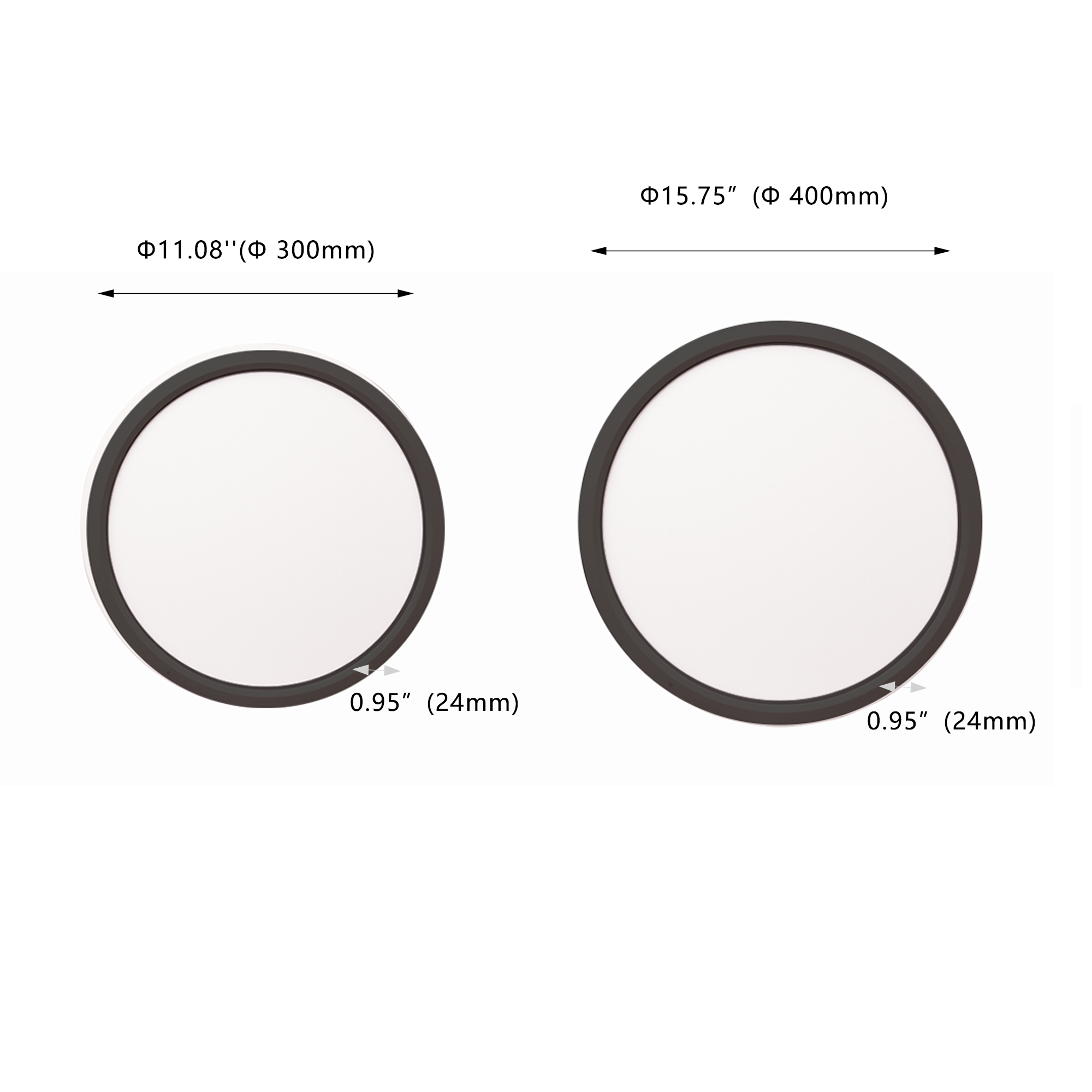

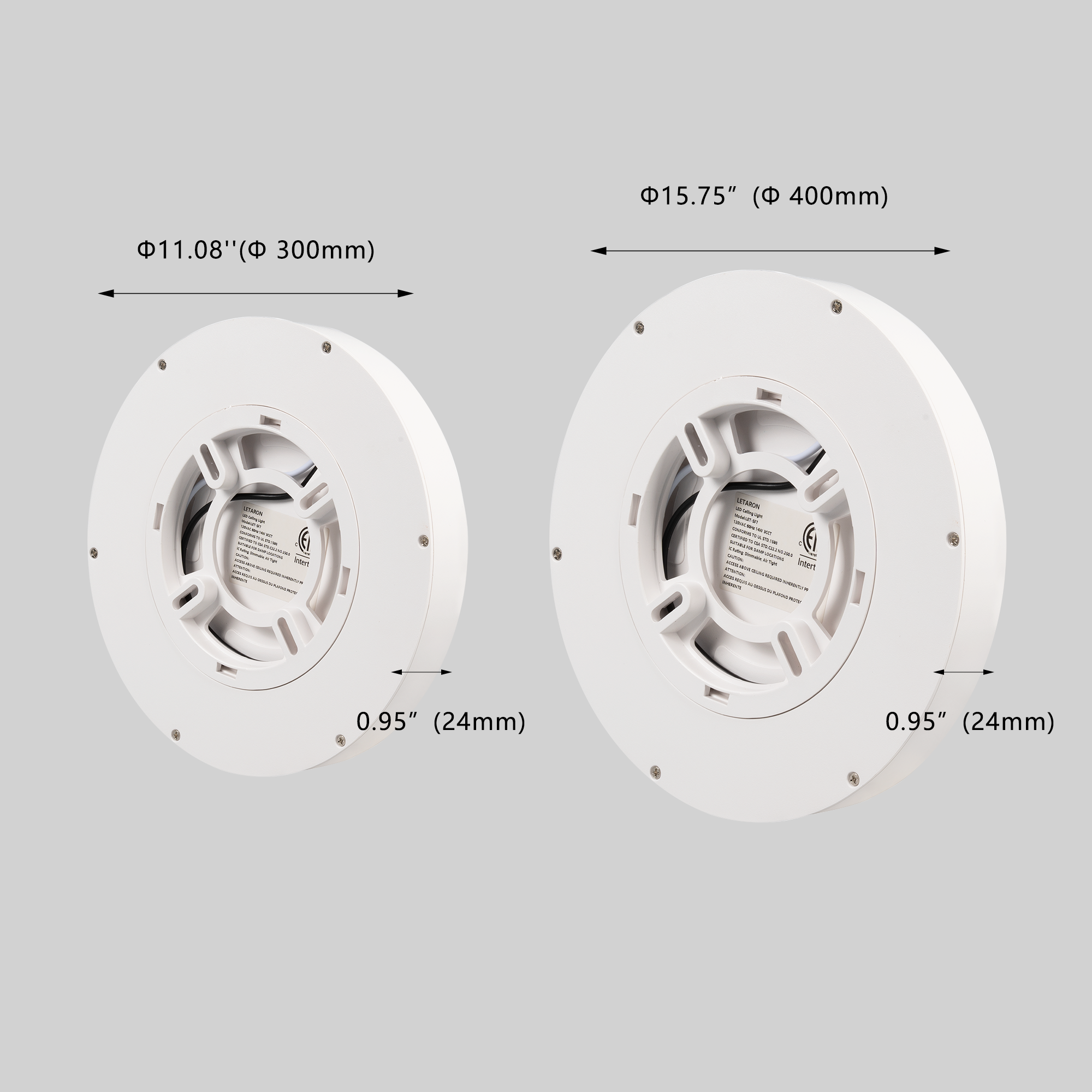

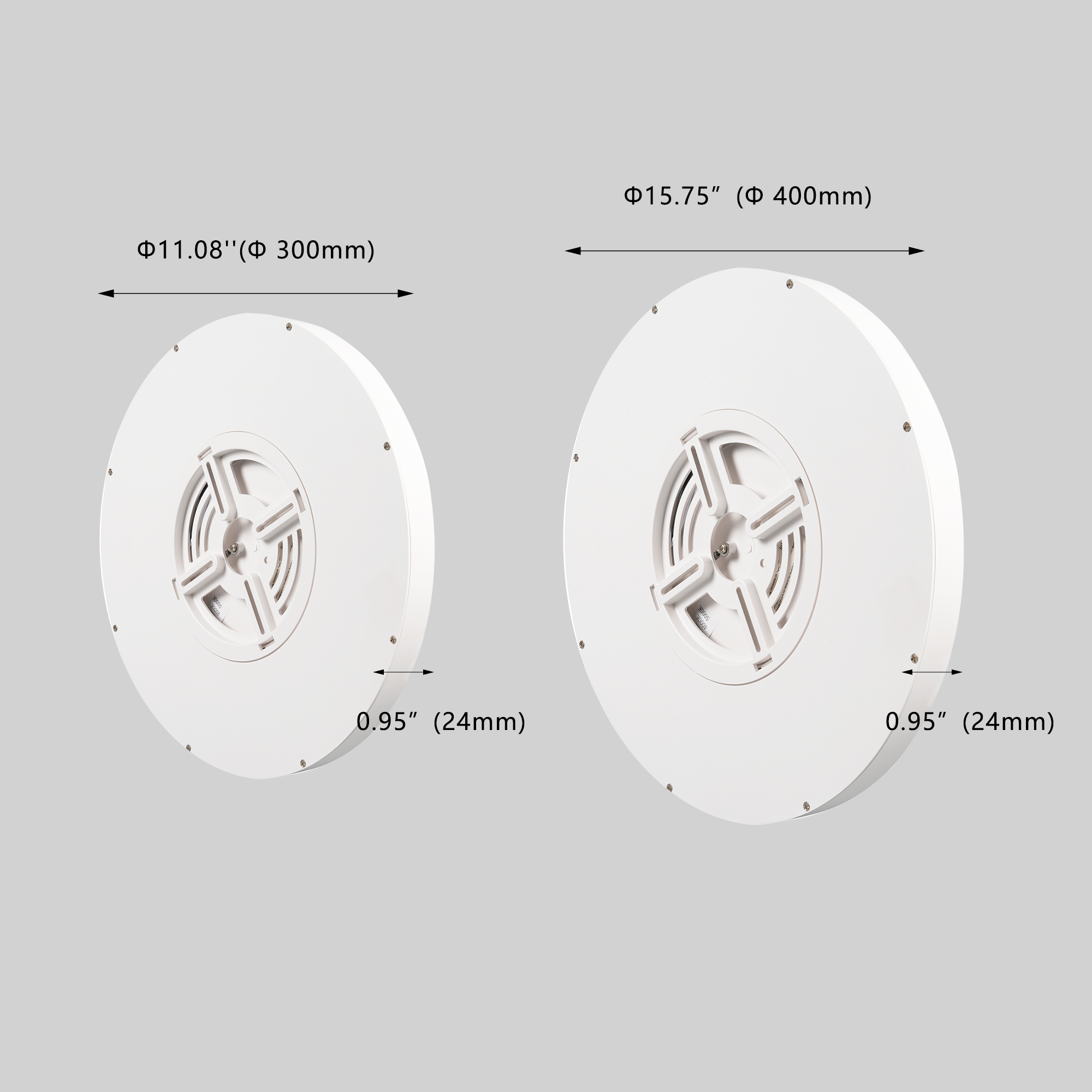

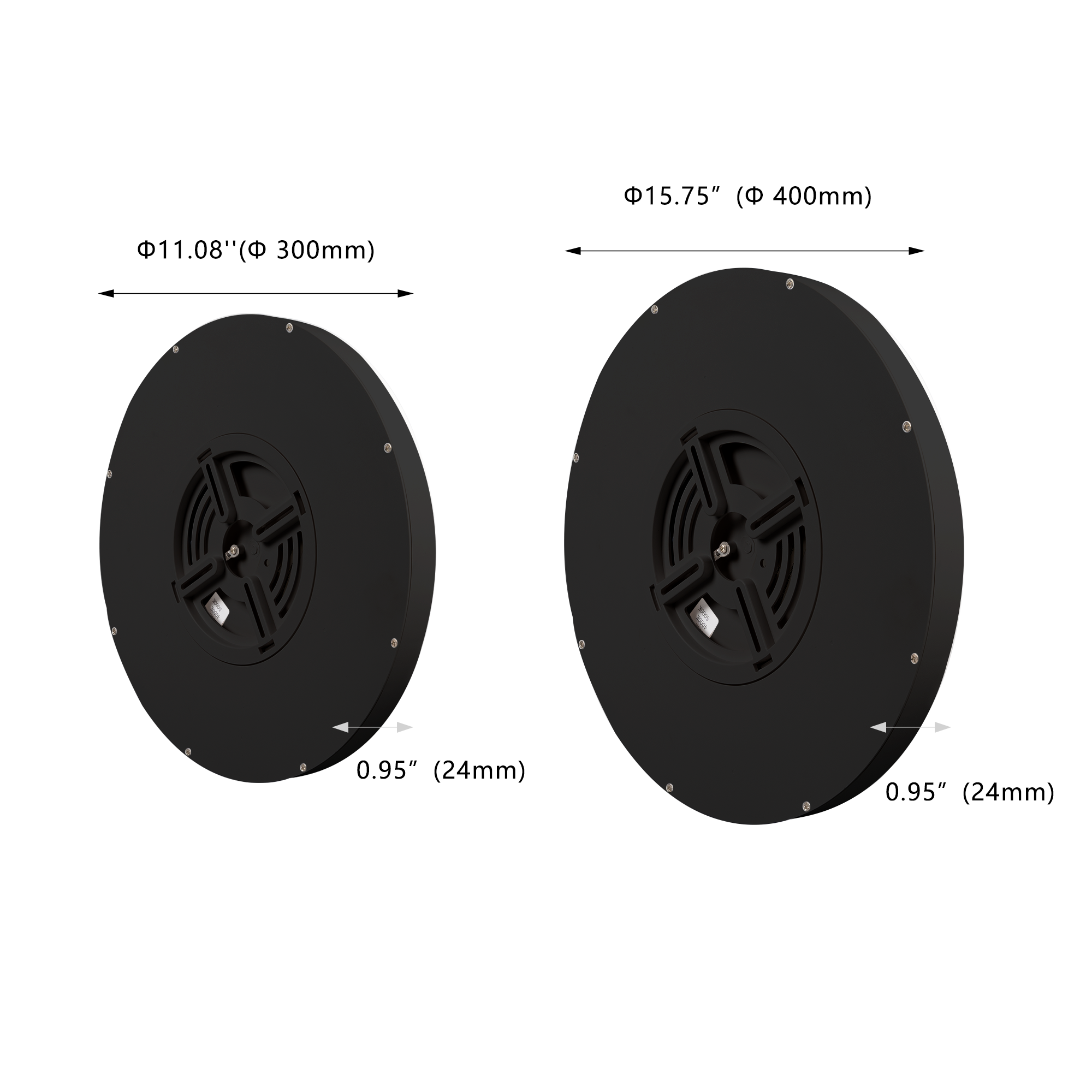

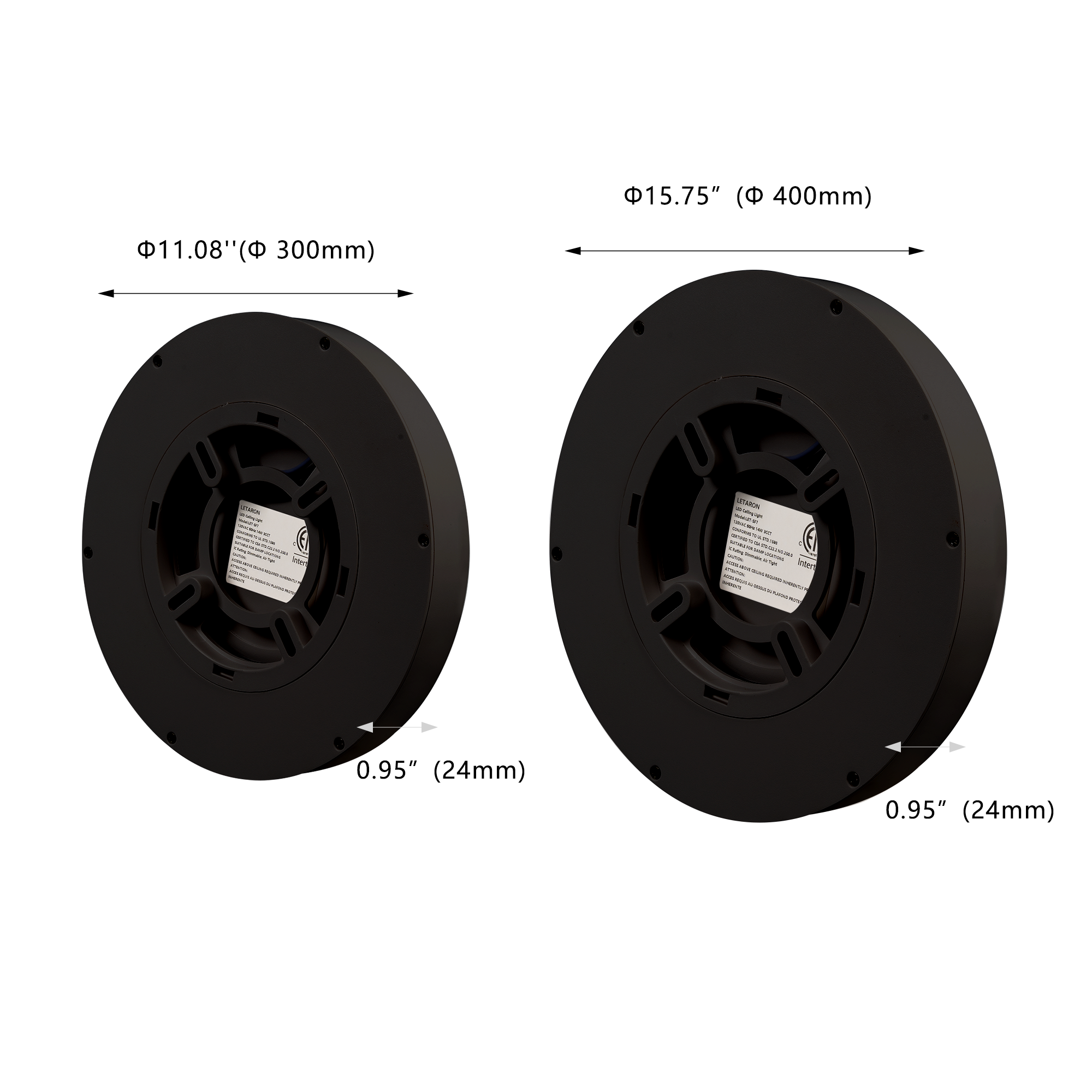

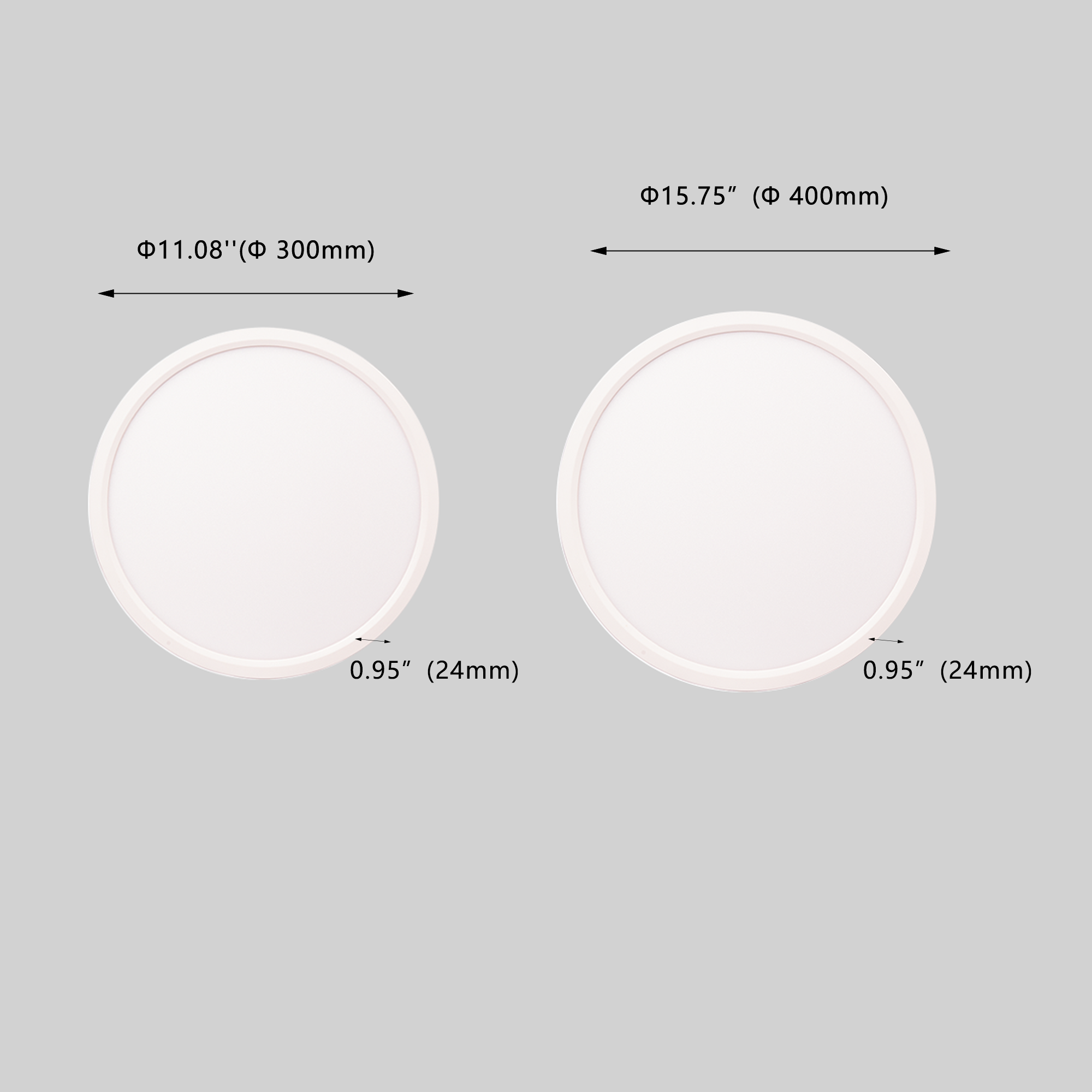

Dimensions:

Model	Outer Diameter	Height
LET-1201-ETL	Ø 11-4/5″ (300mm)	19/20″ (24mm)
LET-1601-ETL	Ø 15-3/4″ (400mm)	19/20″ (24mm)

---

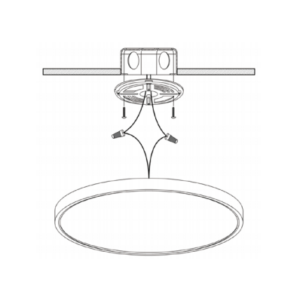

Installation Instructions:

1. Turn off the power before installation.
2. Mount the bracket to the junction box (compatible with 4″, 5″, and 6″ boxes).
3. Connect the wires using the quick-wire terminals.
4. Attach the SLIMFRAME light to the bracket and secure it.
5. Adjust the CCT (3000K, 4000K, 5000K) using the DIP switch.
6. Restore power and test the light.

---

Ordering Guide:

• Size: 12″, 16″.
• Color Temperature: 3CCT (3000K, 4000K, 5000K).
• Finish Options:
  • WH: White

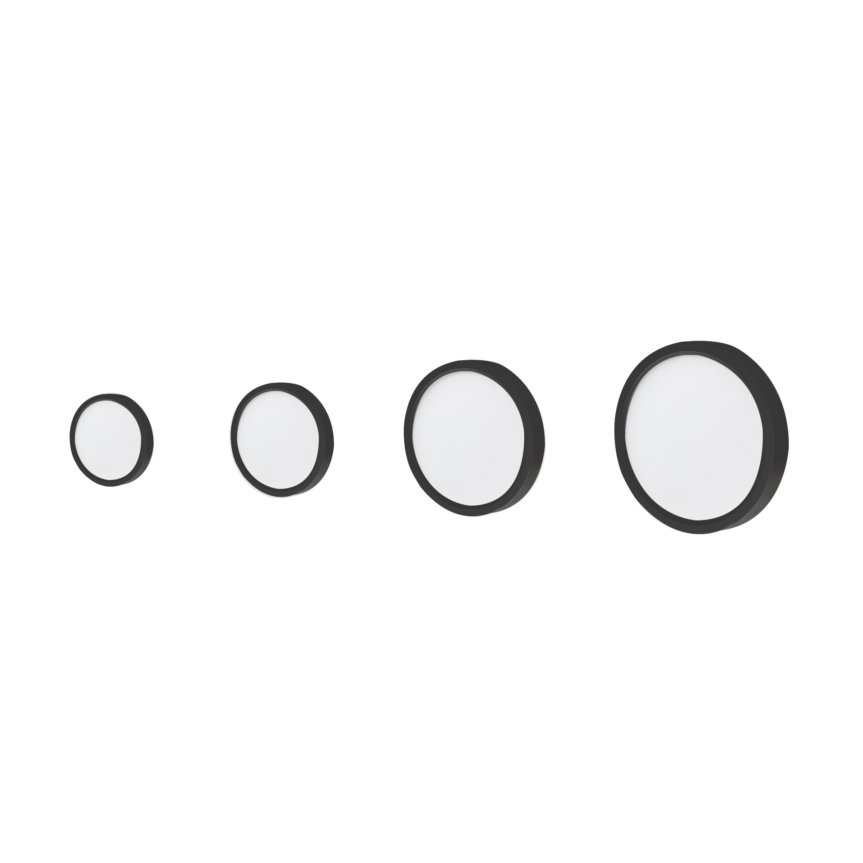

  • BL: Black
